Choosing a tv unit design is not only about the TV. The unit decides where cables run, where the set-top box breathes, how much storage the hall gets and how the wall looks when the screen is off. This guide goes deeper than our general living room interior design ideas and covers sizing, materials, storage, cost drivers and the process we follow at Style Well Interiors in Chennai.
What should you decide before choosing a TV unit design?
Style comes last. Five practical checks decide whether any look will work in your hall.
- Wall width: keep the unit clearly wider than the TV so the screen does not look pinned to the wall.
- Screen height: the centre of the screen should sit near eye level when you are seated, which usually means a lower panel than most people expect.
- Viewing distance: measure from the sofa to the wall. A common rule of thumb is about 1.5 to 2.5 times the screen diagonal.
- Devices: list the set-top box, console, soundbar and router that must live in or near the unit.
- Sockets: mark the existing power and network points, because moving them later cuts into a finished panel.
Which living room TV unit type fits your hall?
Style Well's TV showcase page groups units into three types, each built for a different room size. Pick the type first and the finish second.

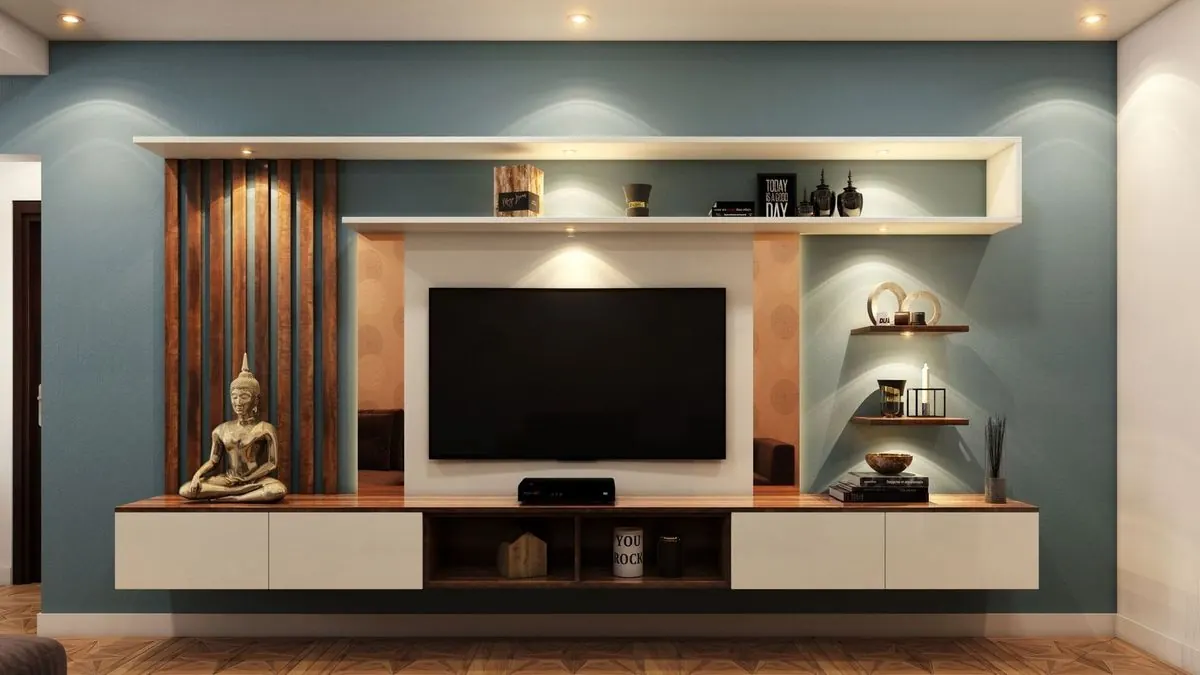

- Wall-mounted unit: floats on a back panel and keeps the floor visible, so it suits small and medium halls.
- Floor-standing unit: a tv cabinet design on legs or a plinth with cabinets below, for halls that need device storage first.

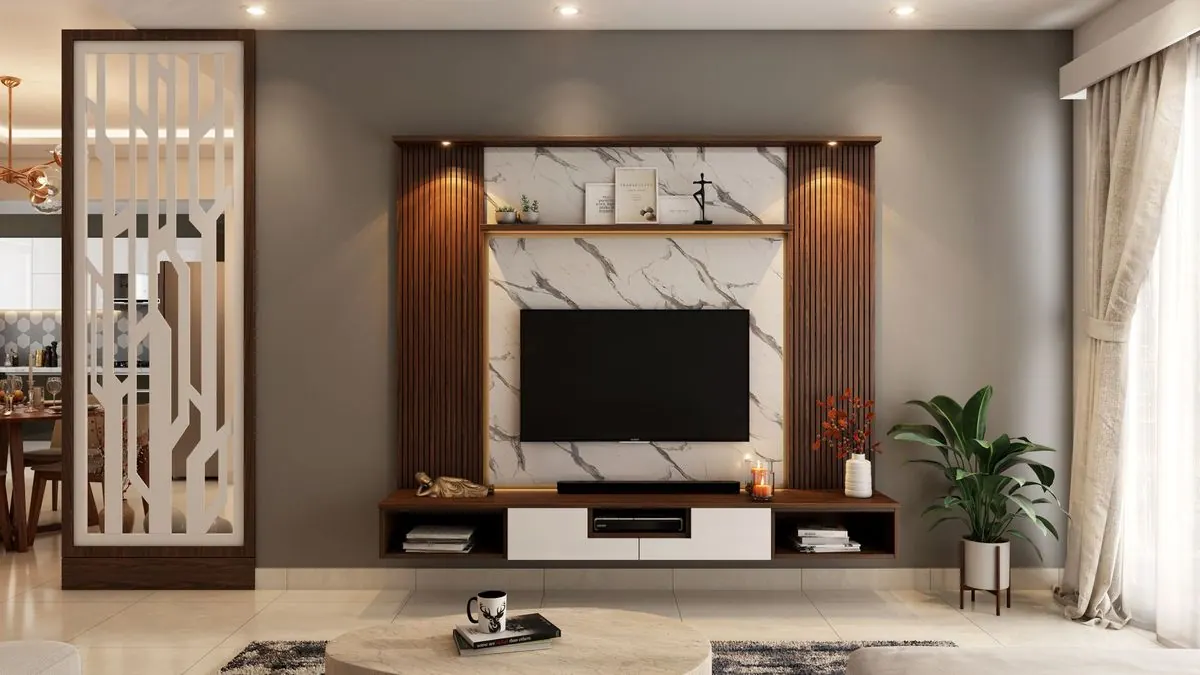

- Full-wall entertainment unit: runs floor to ceiling with a TV recess, shelves and closed cabinets, for halls where the TV wall is the main statement.
The table below uses the price ranges listed on our TV showcase page, with LED strip backlight and cable channel included.
| Unit type | Best for | Storage | Price range (Rs) |
|---|---|---|---|
| Wall-mounted | Small to medium halls | Floating shelves | 20,000 to 60,000 |
| Floor-standing | Device-heavy halls | Bottom cabinets | 35,000 to 90,000 |
| Full-wall | Large halls and villas | Shelves and closed cabinets | 60,000 to 2,00,000 |
How do you pick a simple TV unit design for a small hall?
Small halls reward restraint. Keep the shape quiet and let one feature carry the wall.
- Choose a floating panel so the floor stays open.
- Use light finishes such as off-white, light grey or pale wood instead of dark tones.
- Add open shelves only where you will style objects, and hide the rest.
- A low tv stand design suits rented flats where nothing can be fixed to the wall.
- For a tv design for hall layouts that open into the dining area, a wooden partition beside the TV wall splits the zones without closing off light. See our hall interior designers page for how the partition, showcase and ceiling work together.
Which materials suit a wooden TV unit design in Chennai?
Chennai's humidity is hard on cheap boards. Style Well's TV showcase page warns that MR-grade board swells within 18 months here.
- Ask for the board grade in writing before any carpenter confirms a quote, and choose MDF or BWP-grade board.
- The Bureau of Indian Standards publishes the standards for plywood grades, so ask which standard the board follows.
- Laminate resists scratches, while veneer adds warm natural grain.
- Seal edges and cut-outs properly, because moisture enters at exposed edges first.
| Finish | Look | Why choose it |
|---|---|---|
| MDF with laminate | Matte, 100+ colours | Most popular and scratch-resistant |
| MDF with acrylic | High gloss | Premium look at moderate cost |
| PU painted MDF | Smooth matte or semi-gloss | Clean and contemporary |
| Teak or walnut veneer | Natural grain | Warm look for modern or traditional rooms |
How do you plan a TV unit design with storage?
Storage works best when it is zoned by what you reach for daily. Decide the zones before the carpenter starts.

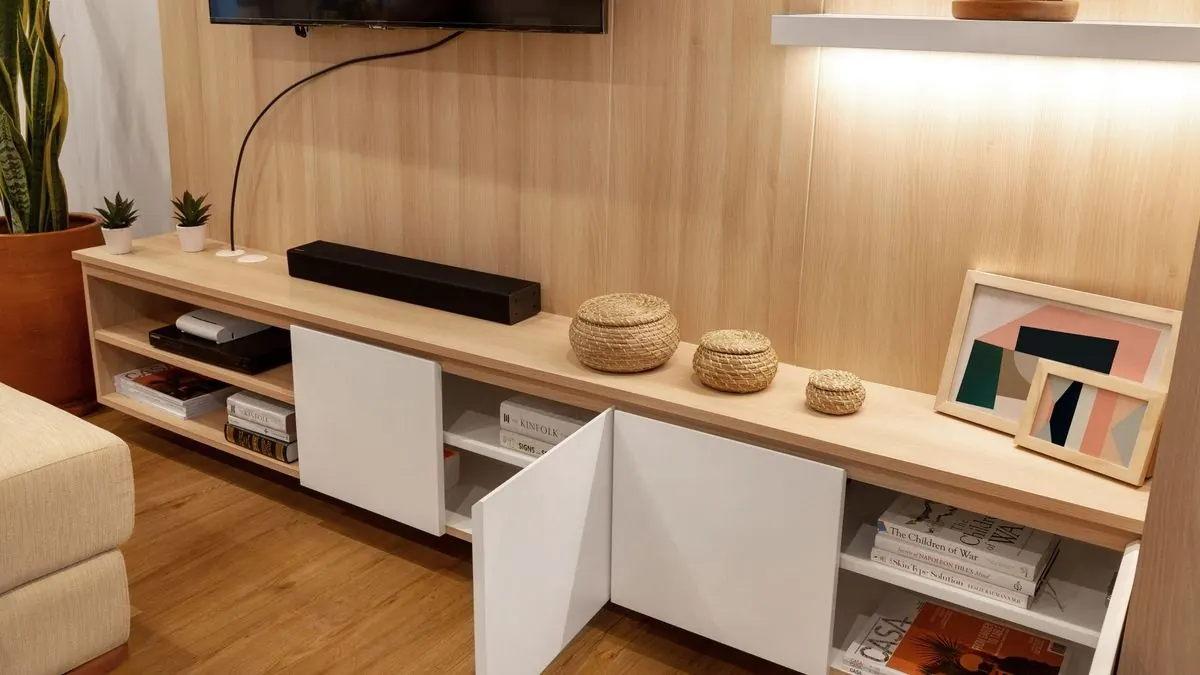

- Put the router, set-top box and console in closed cabinets below the screen.
- Keep open shelves for decor, books and speakers, and limit them to what you will keep tidy.
- Leave ventilation gaps behind and above devices that run warm.
- A modular tv unit design lets you add or rearrange cabinets as your needs change.
- A freestanding tv unit furniture design is easier to move, while a built-in unit fits the wall exactly.
How should cables, sockets and lighting be planned behind the TV panel?
This is the part most people skip. Our team plans cable routing and LED position first, before the panel is made, because fixing them afterwards means opening a finished wall.
- Build a cable channel into the panel profile so wires never show.
- Plan a set-top box recess and place power sockets where plugs stay hidden.
- Design the LED strip position and colour temperature in 3D before boarding. Warm white between 2700K and 3000K suits living rooms.
- Whichever tv panel designs for living room you shortlist, check the back panel can carry the LED strip without hot spots.
- BEE runs star labelling for appliances including televisions, so check the label when you buy a new set.
What does a TV unit cost in Chennai and what drives the price?
Cost depends on the unit type, the width of the panel and the finish you pick. Style Well's listed ranges run from Rs 20,000 for a wall-mounted unit to Rs 2,00,000 for a full-wall unit.
- Panel width and finish move the price more than the unit type alone.
- Board grade matters, so compare quotes that name the same grade.
- LED scope and storage depth add to the total.
- A full tv unit interior with shelves, showcase sections and closed cabinets costs more than a single floating panel.
- Ask for a modern tv unit quote that lists panel width, material, finish, LED and installation separately.
How does the TV unit design process work from site visit to installation?
Our process is built so you see the wall before you pay for it. Speed comes from fixing the brief early.
- Share your wall size and the storage you need around the TV.
- We visit the site for free and measure the wall and sockets.
- You receive a free 3D design in 5 to 7 days showing the full TV wall and materials.
- A fixed written quote follows, with board grade and finish itemised. You commit money only after the design and quote arrive.
- The unit is fabricated and installed. On our TV showcase page, wall-mounted units in OMR and Velachery flats were installed in 10 days at the quoted price.
Seeing tv wall unit design in 3D first also lets you change the finish before anything is cut. You can start with our request quote page or read about the full room scope on our living room interior designers page.
Which TV unit mistakes should you avoid?
Most regrets trace back to details that were never planned. Check this list before you sign off a design.
- Accepting a verbal quote with no board grade named.
- Skipping the cable channel and sticking LED strips on afterwards.
- Choosing a tv unit new design from a photo without checking your wall width and sockets.
- Making the unit too narrow for the wall or the TV too high for seated viewing.
- Closing every device inside a cabinet with no ventilation.
Frequently asked questions
How wide should a TV unit be for my wall?
Keep the unit wider than the TV so the screen does not look pinned to the wall, and leave breathing space at both ends of the wall. Measure the wall and the TV before choosing a design, and let your designer confirm the proportion in 3D.
Which material is best for a TV unit in Chennai?
MDF or BWP-grade board with a laminate, acrylic, PU or veneer finish suits Chennai's humidity. Style Well's TV showcase page advises avoiding MR-grade board, which swells in about 18 months, and asking for the board grade in writing.
Can a TV unit be designed for a small hall?
Yes. A wall-mounted floating unit in a light finish keeps the floor open, and closed cabinets below hide devices. Add open shelves only where you will style objects.
How long does it take to design and install a TV unit?
A free 3D design arrives in 5 to 7 days after the site visit. Style Well's TV showcase page notes wall-mounted units in OMR and Velachery flats installed in 10 days at the quoted price.
How much does a TV unit cost in Chennai?
Style Well lists Rs 20,000 to 60,000 for a wall-mounted unit, Rs 35,000 to 90,000 for a floor-standing unit and Rs 60,000 to 2,00,000 for a full-wall entertainment unit. Panel width and finish change the final figure.
Should I choose a wall-mounted or a floor-standing TV unit?
Choose wall-mounted when floor space matters and you need little storage. Choose floor-standing when you need cabinets for the set-top box, console and cables.
Does a TV unit need a cable channel and ventilation?
Yes. A cable channel inside the panel profile hides wires, and gaps around devices let heat escape. Plan both before the panel is made, because fixing them later means opening a finished wall.
Share your wall size and the storage you need around the TV. Our team arranges a free site visit, a 3D design in 5 to 7 days and a fixed quote, and you commit money only after the design and quote arrive.
